Dimensions of the LED display screen
When it comes to LED displays, the first and most significant consideration is the LED display module. Some are 160mmx160mm, some are 128mmx128, and still, others are 250mmx250mm, so what is a regular LED display module? We believe the standard LED display module size is 320mmx160mm for the best-LED display experience.
After more than a decade of rapid growth, LED displays have become inextricably linked to our lives. But, as technology advances and more product lines emerge, such as innovative led displays and HD LED video walls, the industry norm has remained stagnant. Since different led display manufacturers design philosophy or copy other supplier's led module sizes, not combining the characteristics of led display screen but sacrificing LED display output to get orders from clients, LED Module size is the biggest problem.
In the meantime, the grotesque led module display module results in an outlandish led display screen. Furthermore, some LED display manufacturers to want to offer high-priced, low-quality, and unreasonably designed "differentiation" displays. Customers who purchase a led screen will not receive any after-sales support.
| Model | X-AIO108-1.2 | X-AIO216-1.25 | XW-AIO-1.56 |
| Item | P1.2mm 2K HD AIO 108" | P1.25mm 4K HD AIO 216" | P1.56mm 2K HD Curved AIO 135" |
| Lamp Bead | SMD1010 | SMD1010 | SMD1010 |
| Pixel Pitch | 1.2mm | 1.25mm | 1.56mm |
| Screen Size | 2400mm*1350mm | 4800mm*2700mm | 3004mm*1720mm*500mm |
| Full _x0008_Screen power | 1050W(Average)1750W(Max) | 5000W(Average)6400W(Max) | 800W(Average)2800W(Max) |
| Machine Size | 2450mm*2022.5mm | 4850mm*3374.5mm | 3004mm*2400mm |
| Screen Resolution | 1920*1080 | 3840*2160 | 1920*1056 |
| Brightness | ≥1000cd/m² | ≥1000cd/m² | ≥1000cd/m² |
| Surface color | White/Black | White/Black | White/Black |
| Refresh Frequency | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Grey Scale | 16bits | 16bits | 16bits |
| View distance | ≥1.2M | ≥1.2M | ≥1.5M |
| View Angle | horizontal: ≥170/vertical: ≥170 | horizontal: ≥170/vertical: ≥170 | horizontal: ≥140/vertical: ≥120 |
| Weight | 190.5kg | 465kg | 278kg |
| Waterproof Level | IP43/IP30 | IP43/IP30 | IP43/IP30 |
| Control Method | Mobile App/PC | Mobile App/PC | Mobile App/PC |
| Working Environments | Temperature:-20℃～+60℃, Humidity: 10%-90% | Temperature:-20℃～+60℃, Humidity: 10%-90% | Temperature:-20℃～+60℃, Humidity: 10%-90% |
| Signal port | 3*HDMI, 8*1G Internet Port, 3*USB2.0, 1*USB3.0, RJ45 Port, Sound input, WI-FI, Red Remote Control, Bluetooth, Wireless Projector | ||
| Life Scan | ≥100,000hours | ≥100,000hours | ≥100,000hours |

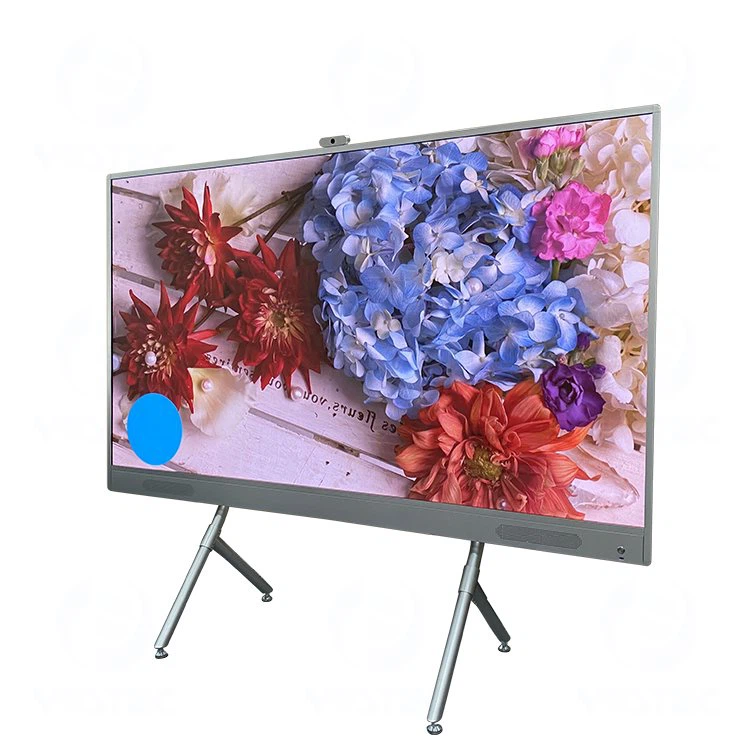

Yestec LED AIO machines has the confirmed four size, which is suitable for different conference application. The resolution is based on 2K or 4K. Attached Spec. Examples are for 2pcs of 2K solution and 1pcs of 4K solution, which are the most popular choice by customers.
